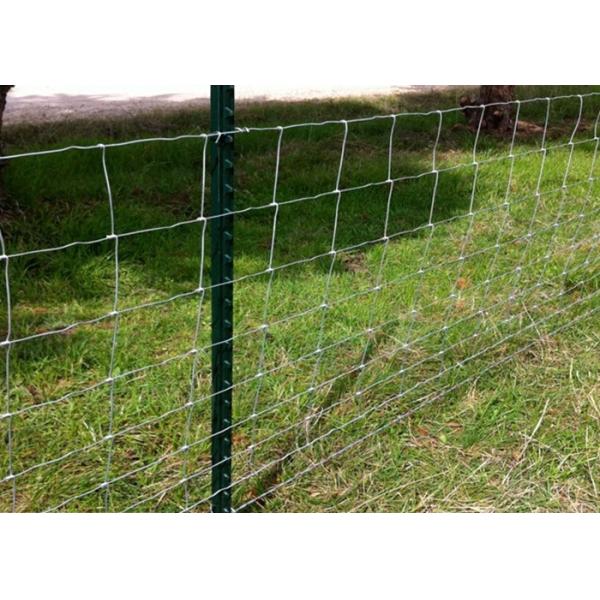

Grassland Fence/ Field Fence / Farm Fence/ Knited Hinged Fencing
Grassland fences have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time.
Specifications:
Material: hot-dipped galvanized wire, which is made of Q235 iron rod.
Wire dia: 2mm
Horizontal wire Dia: 2.0mm Vertical wire dia:2.0mm, Selvage wire dia : 2.5mm
Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m etc
Length: 50m, 100m , 200m
Distance: (vertical) 15-14-13-11-10-8-6cm; (horizontal) 15-18-20-40-50-60-65cm;
Structure: hinged joint Knot,ring-lock knot.
Finished: Electric / hot dipped Galvanized
Details Spec
| Num | Specification mesh | Gross Weight
(kg) | Set and bottom silk Diameter
(mm) | In silk
Diameter
(mm) | Volume diameter (mm) |
| | Type | Specification | | | | |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 270 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 270 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 270 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 270 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 270 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 | 270 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 |
| For example , 7/150/813/50 ------ “7” means the horizontal wire quantity , “150” means the vertical wire spacing (mm), “813” means the width of the wire mesh (mm), “50” means the length of each roll (m) ,the length can be made according to your requirement . Wire Distance, roll height and length can be customized |
Feature:
It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, animal, forestry, highway and environments.
Application:
Used for grassland, breeding, forestry, cow, cattle, horse, goats, Pig, chicken, pultry, deer, animal husbandry, highway, isolation of sites etc.
Packing:
(1) In nude , the loading capacity more than to the packing with pallets to reduce freight cost savings
(2) Plastic film, and then wooden or metal pallets , easy shipping, beautiful packaging costs will increase accordingly.
